WELDING NOZZLES
| description | dimension | |
|---|---|---|

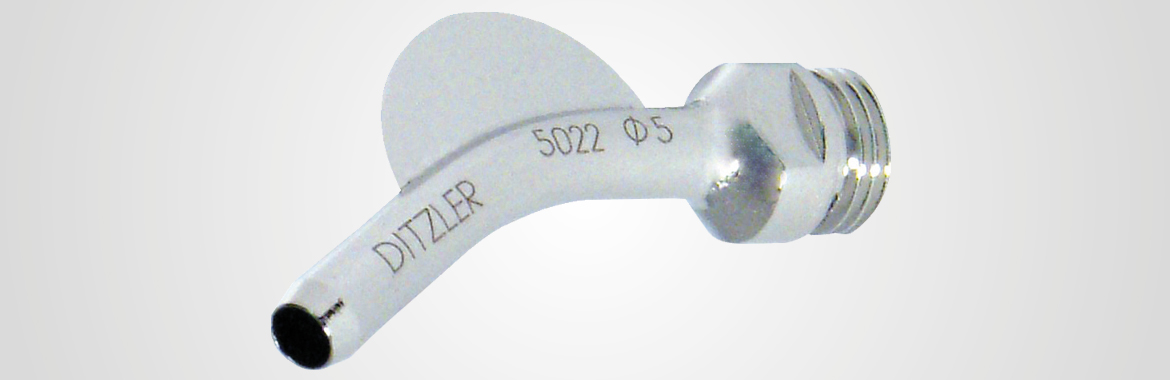

| Round nozzle with cutting edge | 5020 Ø3mm 5021 Ø4mm 5022 Ø5mm 5023 Ø6mm 5024 Ø8mm | |

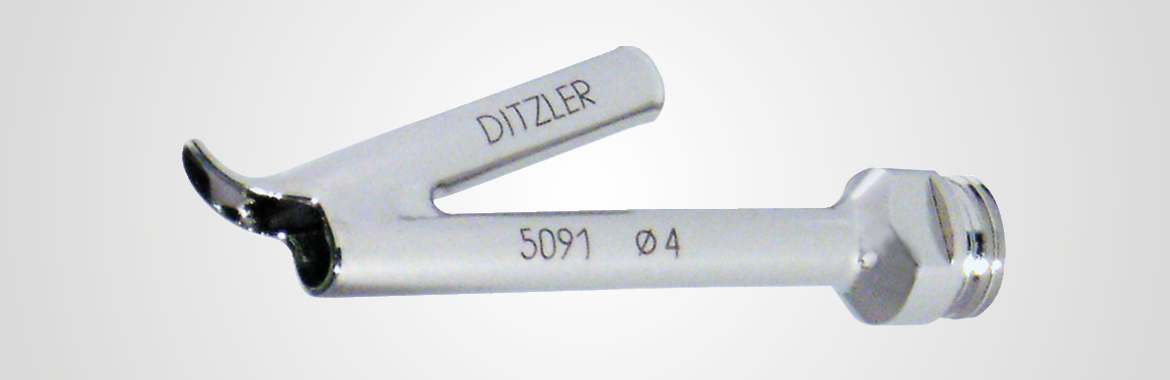

| Steep nozzles for round welding wire | 5090 Ø3mm, straight 5091 Ø4mm, straight 5092 ∆ 4mm | |

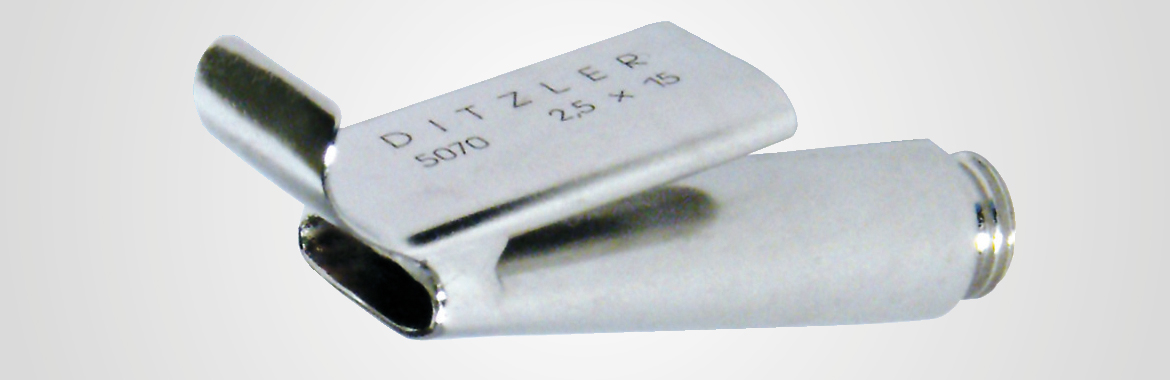

| Flat nozzle for welding tape | 5070 □ 2.5mm x 15mm (E-CTFE) 5071 □ 2mm x 12mm 5072 □ 2mm x 8mm | |

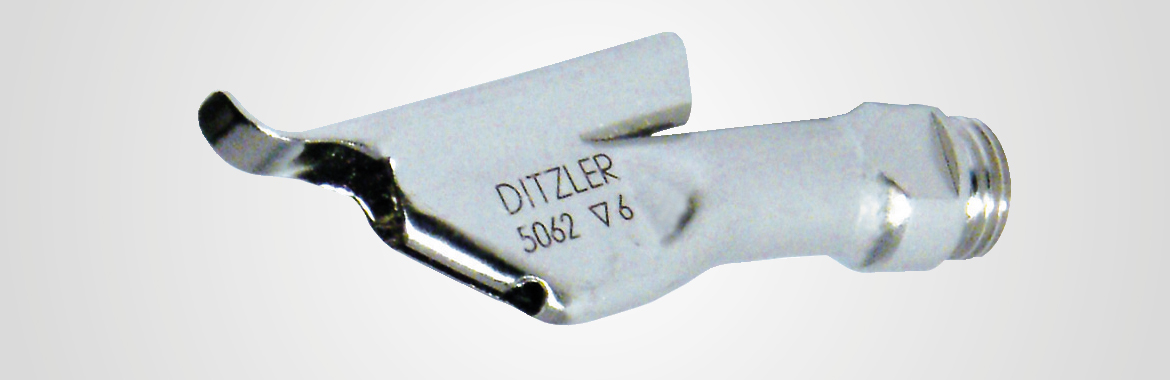

| Fast-welding nozzle, three-sided | 5060.1 ∆ 2mm 5060 ∆ 3mm 5061 ∆ 4mm 5062 ∆ 6mm 5063 ∆ 8mm 5064 ∆ 10mm | |

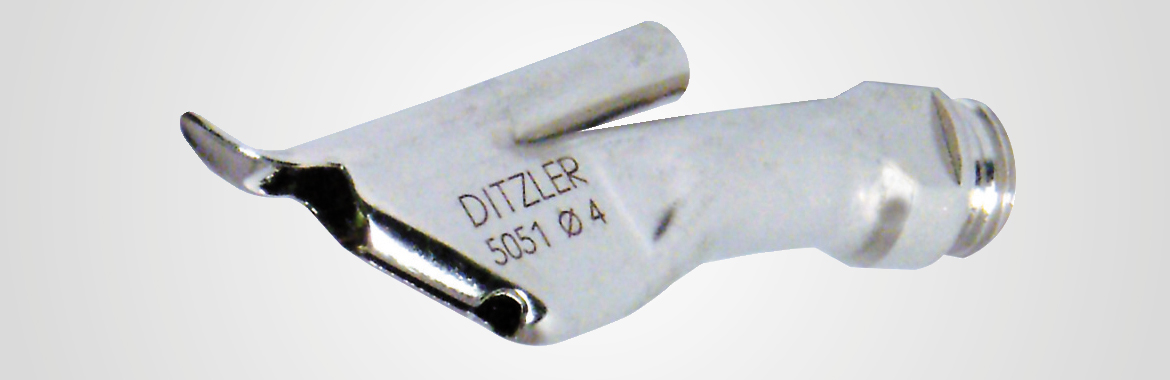

| Fast-welding nozzle, round | 5060.01 Ø2mm 5050 Ø3mm 5051 Ø4mm | |

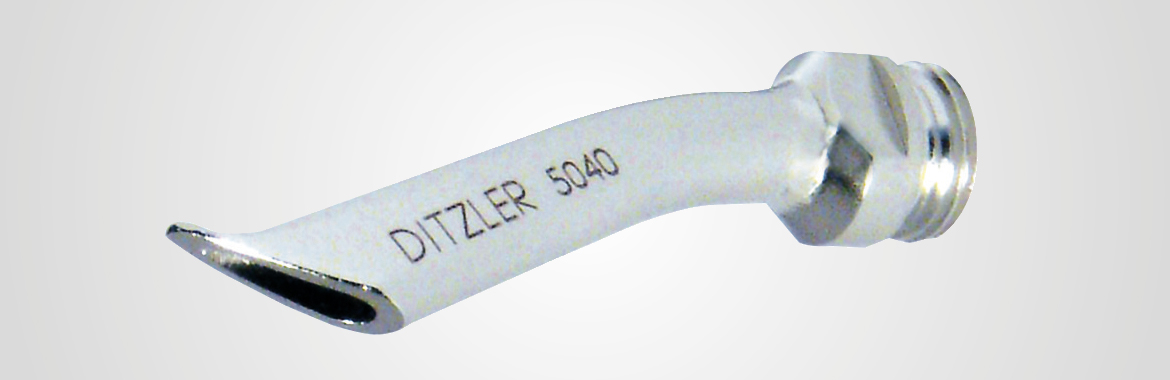

| Tacking nozzle | 5040 | |

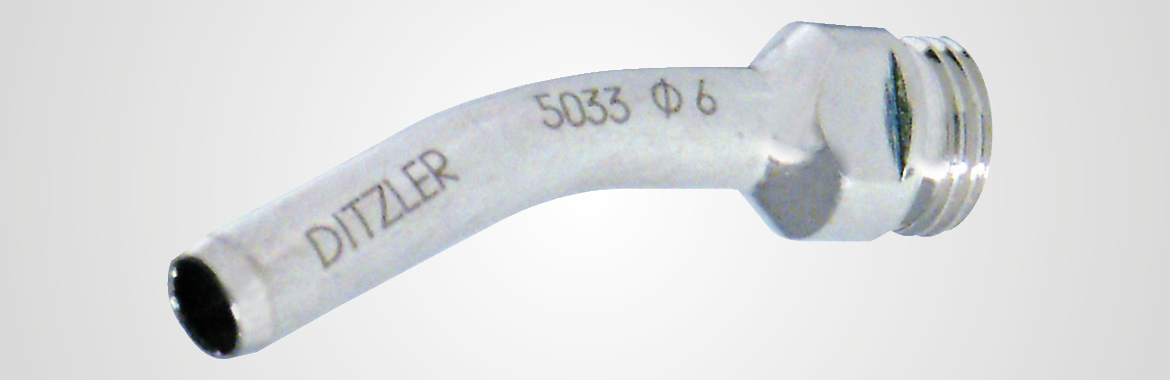

| Round nozzle without cutting edge | 5030 Ø3mm 5031 Ø4mm 5032 Ø5mm 5033 Ø6mm 5034 Ø8mm | |

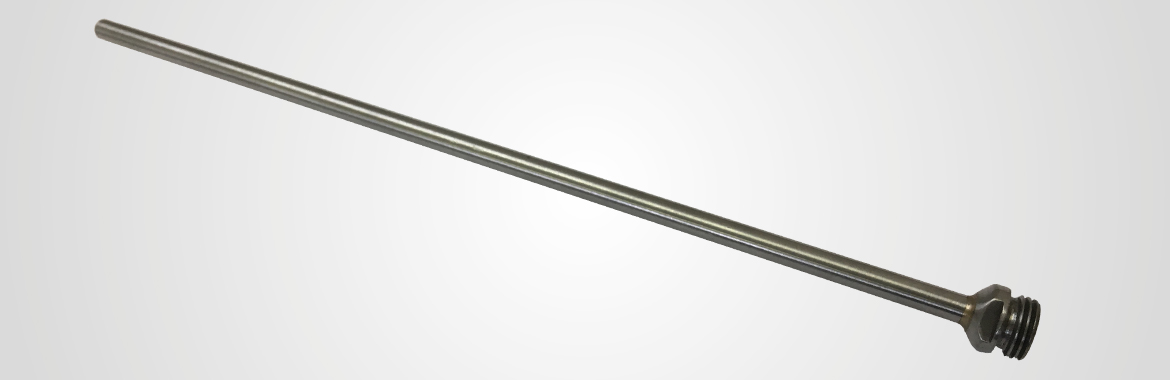

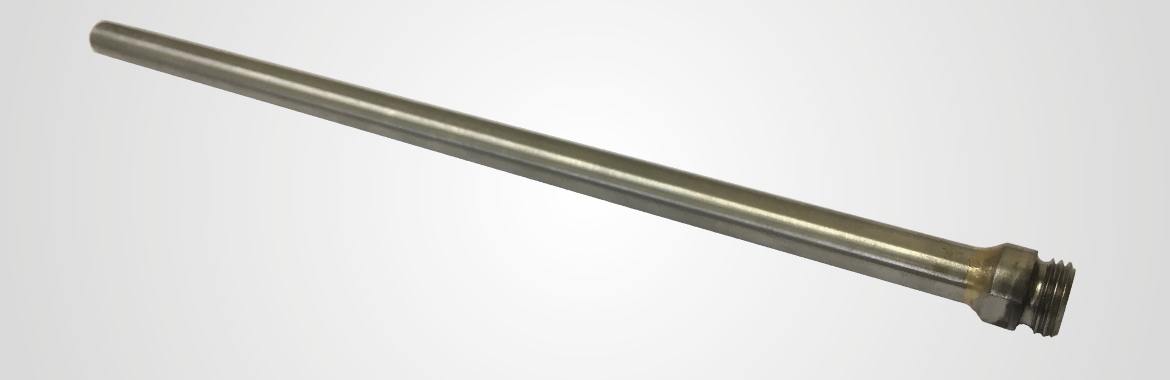

| Nozzle extension | 5089.1 Ø10/8mm Nozzle length: 250mm | |

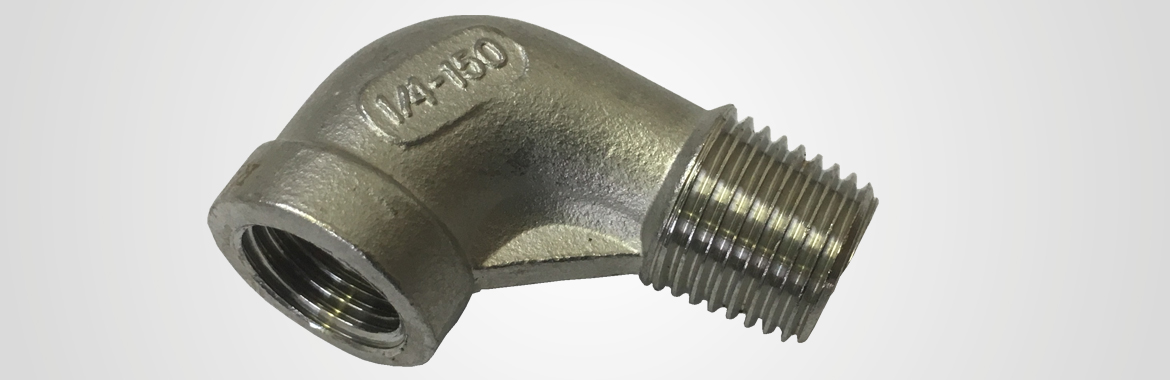

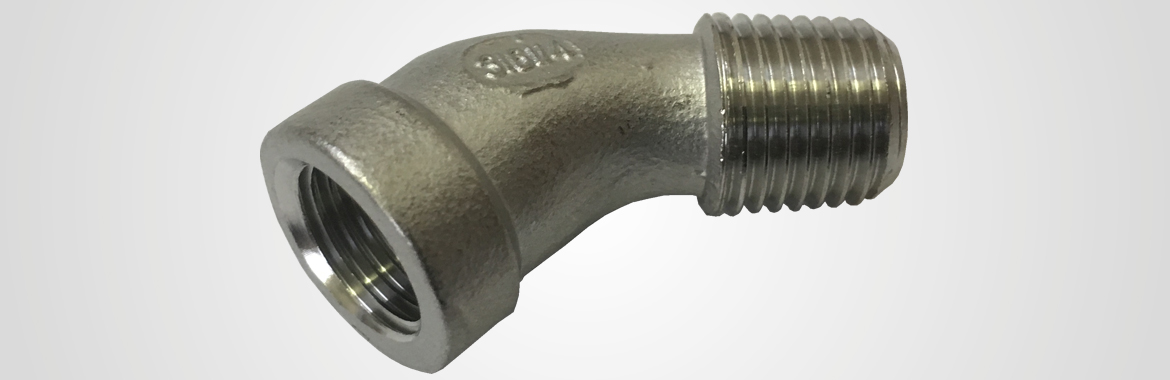

| angle | 5340 90° angle 1/4'' to welding nozzle 5341 45° angle 1/4'' to welding nozzle | |
