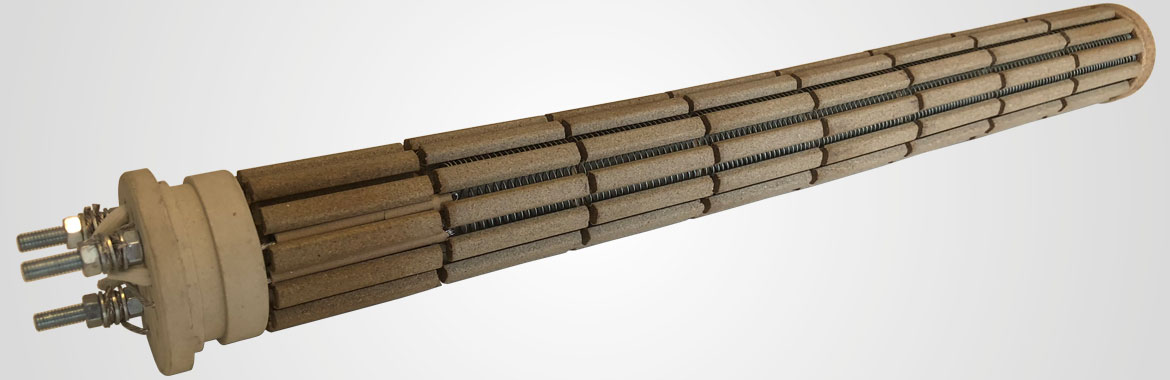

TUBE BOILER RADIATORS

DESCRIPTION

Tube boiler radiators are used as a rule if liquids have to be heated with easily replaceable heating elements. For this, boiler radiators are inserted into metallic, glass and plastic protective tubes. Vulkan tube boiler radiators stand out due to the selection of first-class materials, which is reflected in the long service life when used correctly.

- Conduits made of iron-free chromium nickel alloy
- Spiral carriers made of heat exchange-resistant steatite
- Front and end-piece made of mechanically high-quality ceramics
- Central rod made of scale-resistant material

TECHNICAL DATA

Diameter of the boiler radiator: Ø20; Ø26; Ø32; Ø36; Ø46; Ø57
Installation: horizontal assembly, from Ø 32 also vertical.
Length and power according to our data sheet or your requirements.
Tube boiler radiators can be produced in almost all imaginable shapes and power ranges.

REMARKS

INSTALLATION

Reduction in accordance with customer requirements, even in the smallest quantities and as an individual production.

Easily replaceable heating element for installation in protective tubes, for the heating of gaseous, liquid and solid media!

FIELDS OF APPLICATION

Easy replaceable heating element for mounting in protective tubes, for the heating of gaseous, liquid and solid media.
